Make Noise PrssPnt

Make Noise PrssPnt

Regular price €109,00
Sale price Regular price

Product details

Main features

  • Touchone copper plate generates four simultaneous control outputs
  • Gatesseparate momentary and toggled gate signals
  • Expressionpressure CV and slew-adjustable Smooth Touch function

Overview

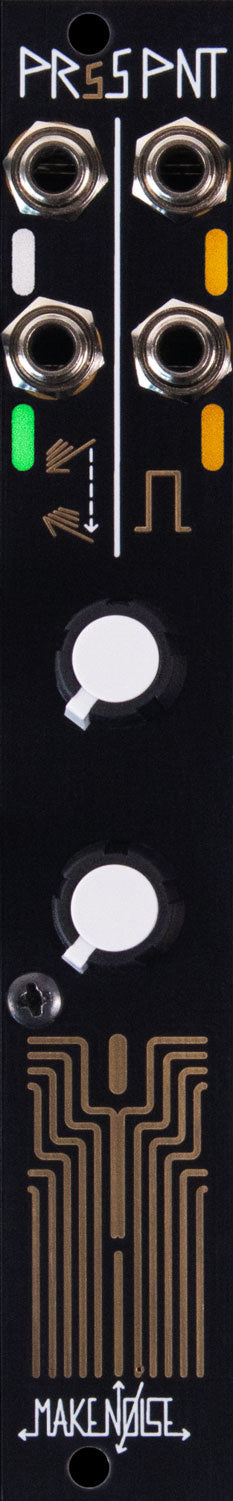

The Press Point music synthesizer module is a controller in which several signals are generated by touching the printed copper wire at the bottom of the instrument.  Touching PrssPnt, you become part of the circuit, generating a total of four simultaneous signals (two CV, two Gate).



The basic function of PrssPnt will be familiar to anyone who has used Pressure Points or 0-CTRL. It could be seen as a single “souped-up” channel of one of these devices. Since it is a single channel, the tuned voltage outputs are not relevant, and instead are replaced with more playable sensitivity controls and alternate pressure and gate outputs.



  • Momentary Gate output remains high as long as it is being pressed

  • Toggled Gate output goes high and low with each successive press of the plate: press it to make it go high, press it again to make it go low

  • Pressure output generates a positive control signal proportional to the amount of Pressure applied, further affected by the Sensitivity Panel Control

  • Smooth Touch Function mimics the useful patch of sending a Pressure Output through a carefully tuned slew limiter for extended function generation

  • Turning up the Slew amount will allow for larger than life functions with very long decay to be generated by hand.

  • All four outputs available simultaneously



Specs:

4hp

14mA @+12V

0mA @-12V

30mm depth (incl. power cable)

Specifications· 5 details

General

HP
4 HP
Functions
Controller and Modulation
Height
3U
Synthesizer form factor
Control voltage or gate connectivity

About the brand

Make Noise

Heavily influenced by West Coast synthesis traditions, Make Noise designs unique analog and digital hardware known for deep functional versatility, complex modulation capabilities, and distinctive tactile performance workflows.
Origin
US
Founded
2008
Products
34
