Moog Sound Studio Accessory Kit

Moog Sound Studio Accessory Kit

Stack, Connect, and Create

The Moog Sound Studio Accessory Kit is the 3-tier rack solution your Mother Ecosystem synths have been waiting for. Mount any combination of Mother-32, DFAM, Subharmonicon, Spectravox, and Labyrinth semi-modular synths together vertically for maximum modularity and synthesis possibilities.

Each Moog Sound Studio Accessory Kit includes a compact summing mixer with three-way power distribution to provide flexible signal routing and power your entire system conveniently from a single power supply. Also included is a patch cable organizer, dust cover, and of course, all the cables needed to connect your instruments together.

What’s in the box?

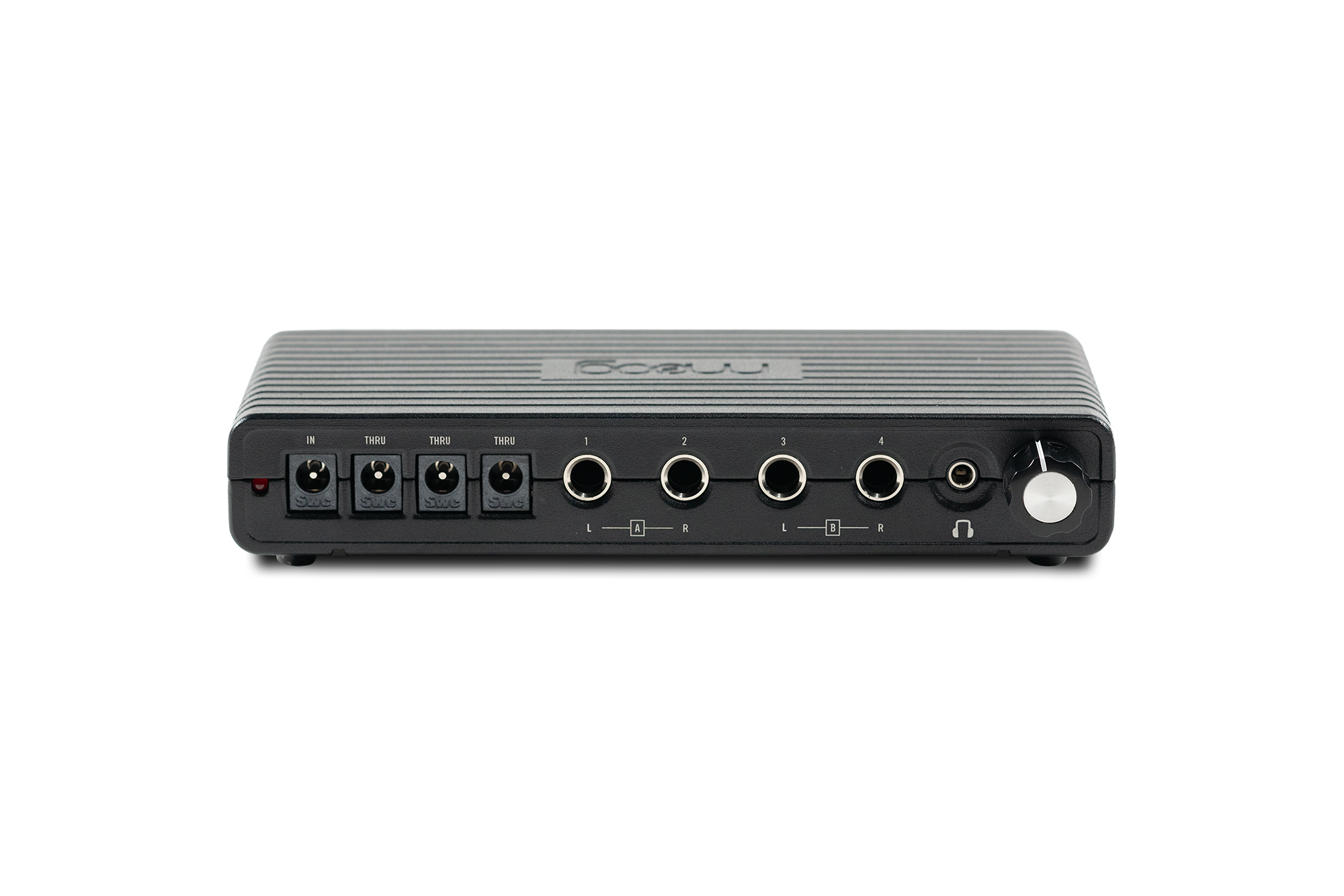

Personal Stereo Summing Mixer and Instrument Cables

This four-input analog summing mixer features selectable mono or stereo configurations for versatile routing options, and the built-in three-way power distribution hub supplies power for up to three 60HP instruments conveniently from a single source. The included instrument cables come in lengths and colors to complement the system and reduce clutter. The 1/8” output with a built-in level control allows you to connect headphones, an audio interface, or monitor speakers. Three-Tier Rack Kit

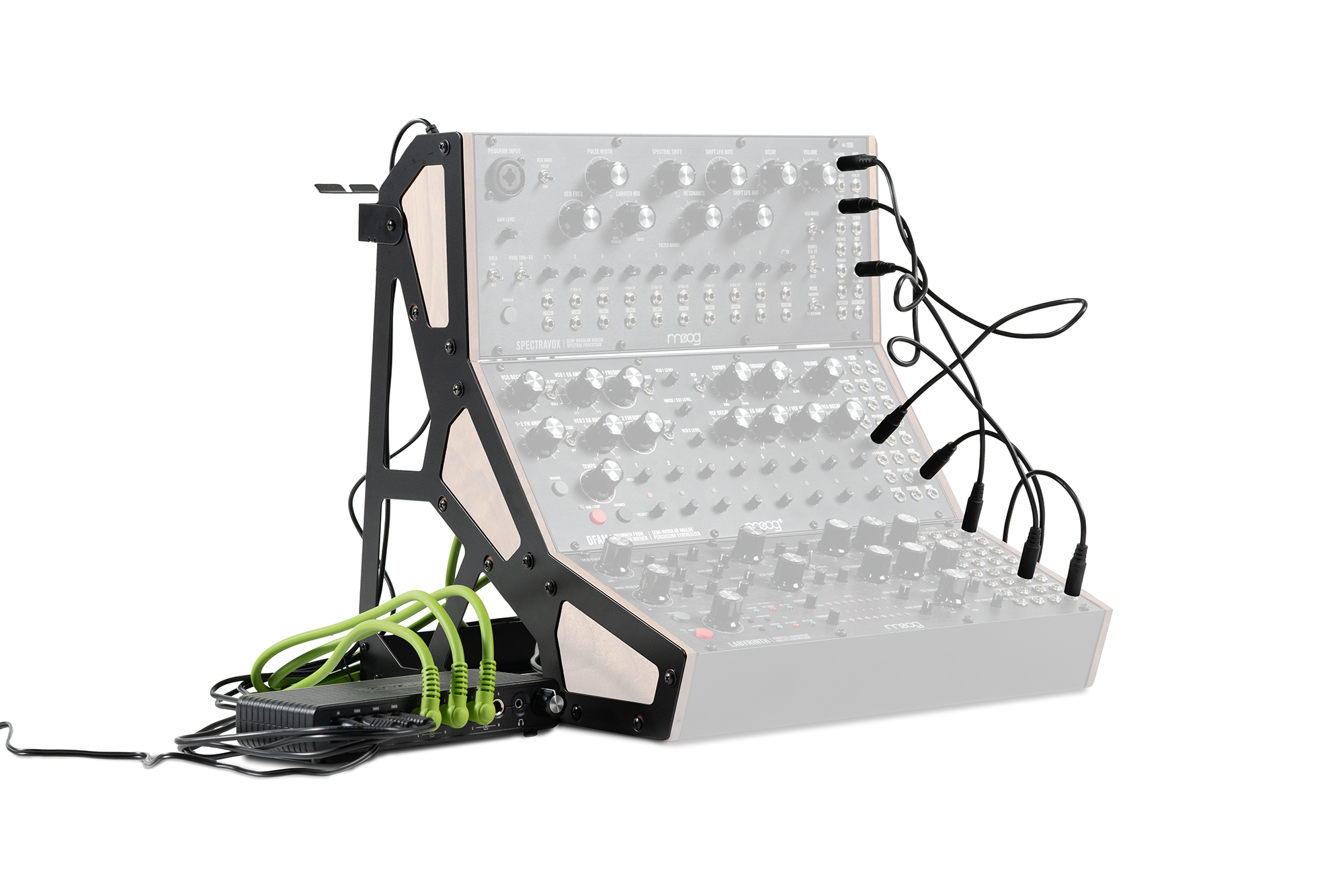

Conveniently stack all three synthesizers and summing mixer together as one connected system to maximize studio space and orient instruments vertically for optimal interconnectivity. Designed for both stability and style, the rack not only optimizes your space but also creates an ergonomic setup that makes for easy access to all controls and patch points. Protective Dust Cover

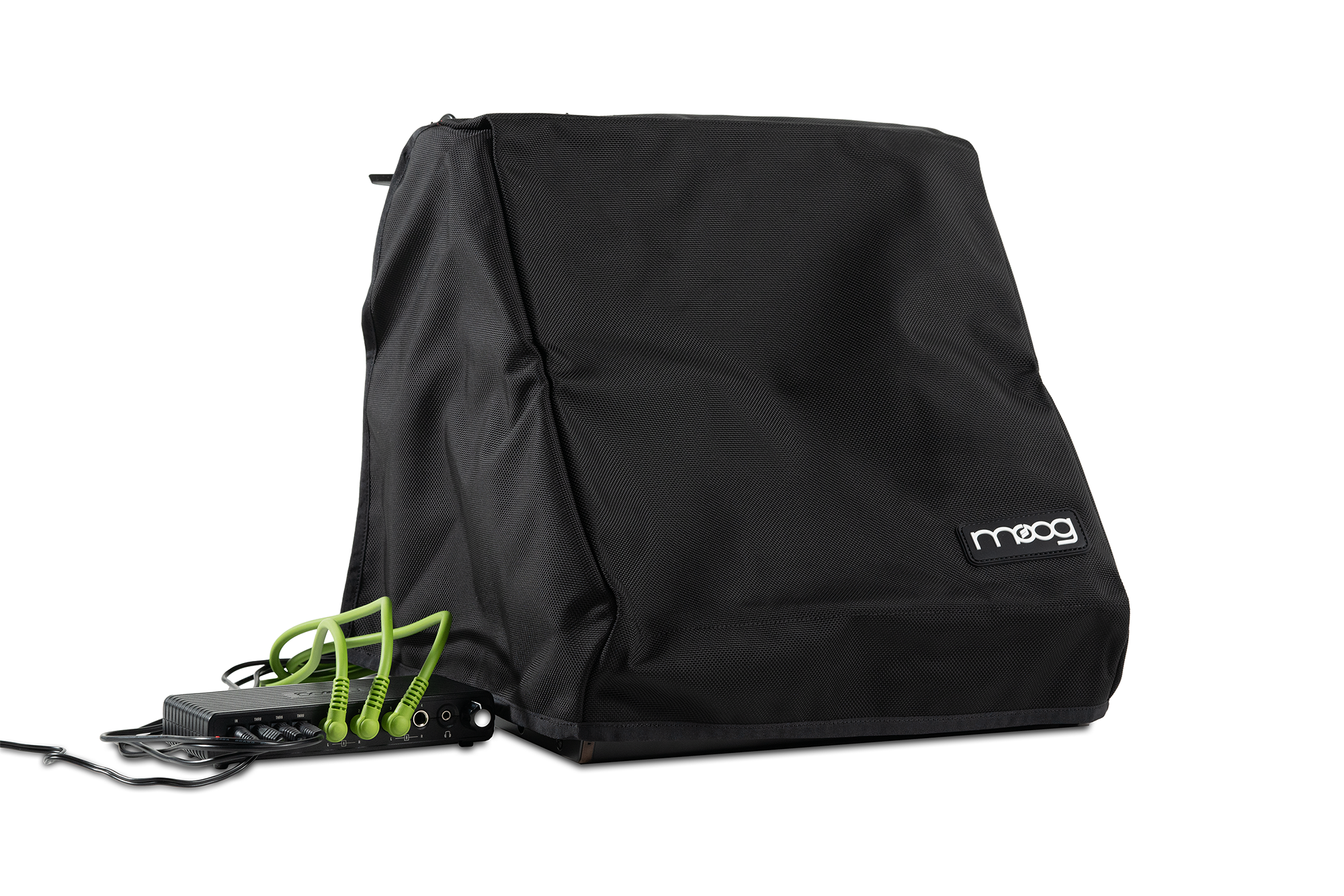

Protect your instruments when not in use. This water repellant cover is made from rugged Ballistic Cordura to safeguard your gear from dust, spills, and other studio (and stage) mishaps, while the ultra-soft interior remains gentle against your synth. Custom-fit with room to accommodate patch cabling and rear I/O panel access. Adjustable Velcro straps ensure your cover fits snug and stays in place.

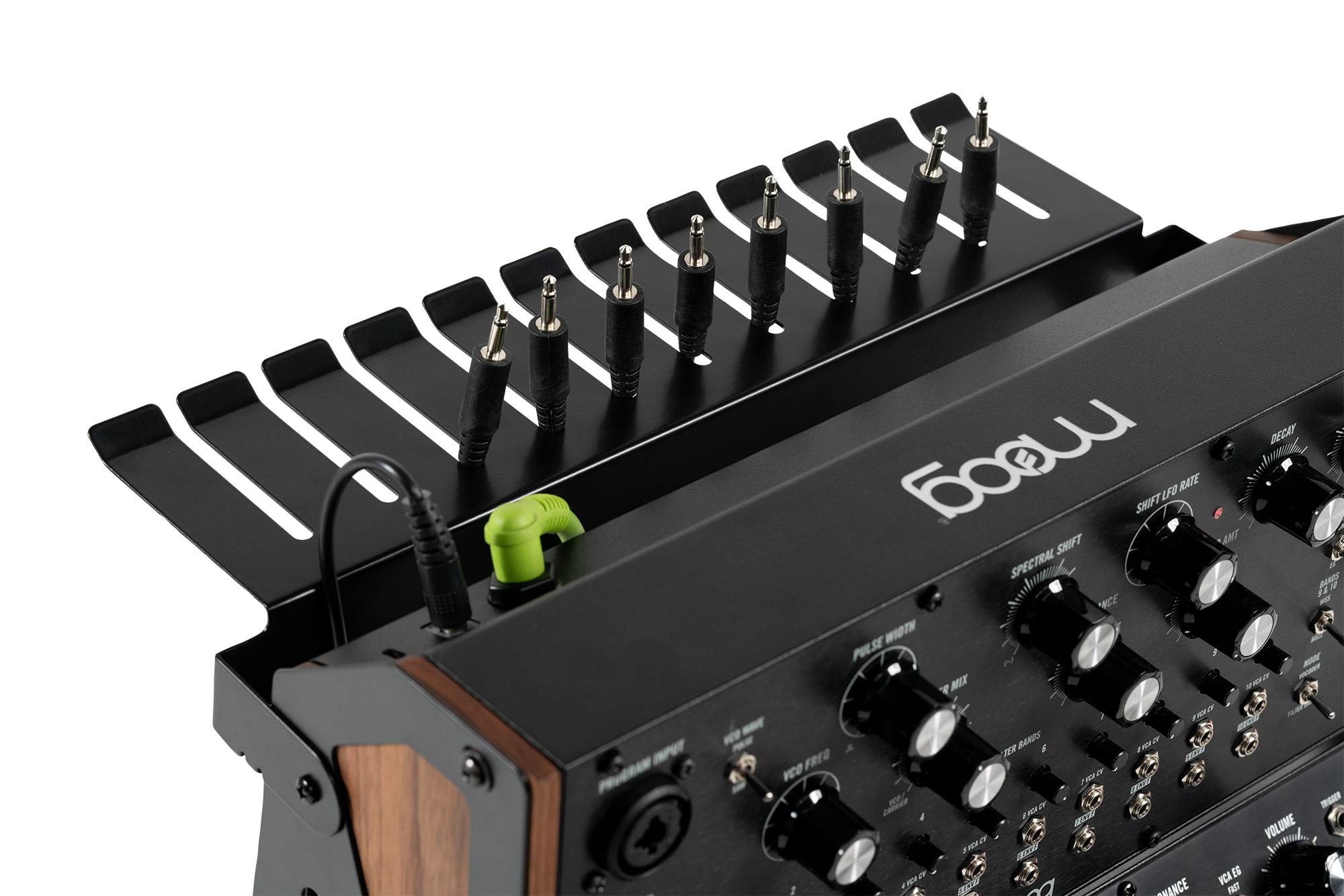

Cable Organizer and Custom Patch Cable Set

The included patch cable organizer connects to the three-tier rack, keeping patch cables neat and orderly for a hassle-free workflow. A custom set of patch cables have been selected in lengths and quantities to maximize system patchability.

SPEC SHEET:

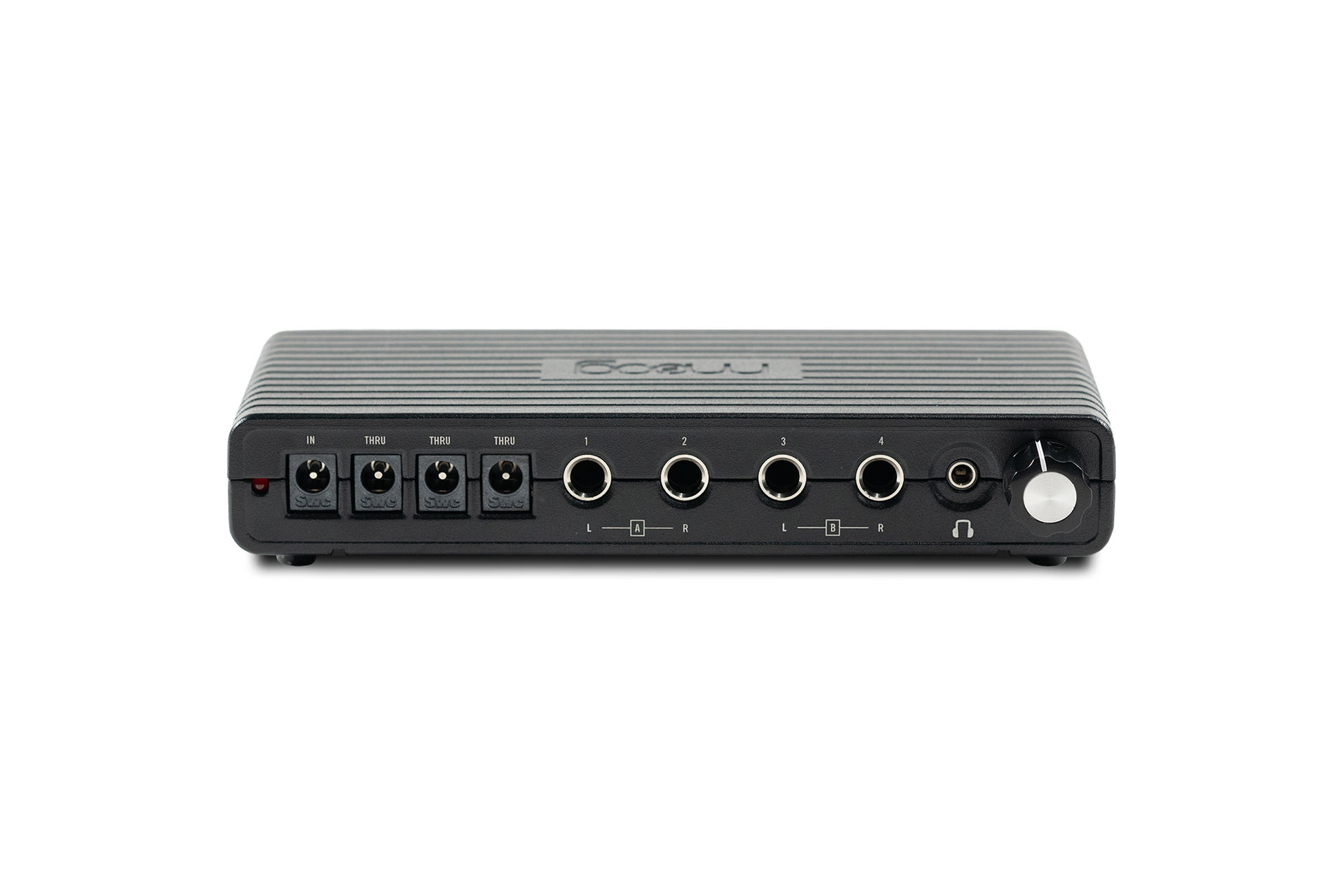

MOTHER MIXER FRONT

INPUTS: 4 x 1/4” TS Input Jacks

OUTPUTS: 1/8” TRS Output Jack

POWER: Power Supply connection, 3 power supply THRU connections

MOTHER MIXER REAR

AUDIO: 3+4 MONO/B STEREO switch, 1+2 MONO/A STEREO switch

POWER SUPPLY (INCLUDED)

STYLE: Wall adapter; barrel connection; center-pin positive

INPUT: 100 – 240V ~ 50/60Hz 1.5A MAX

OUTPUT: 12.0V - 3.0A, 36.0W

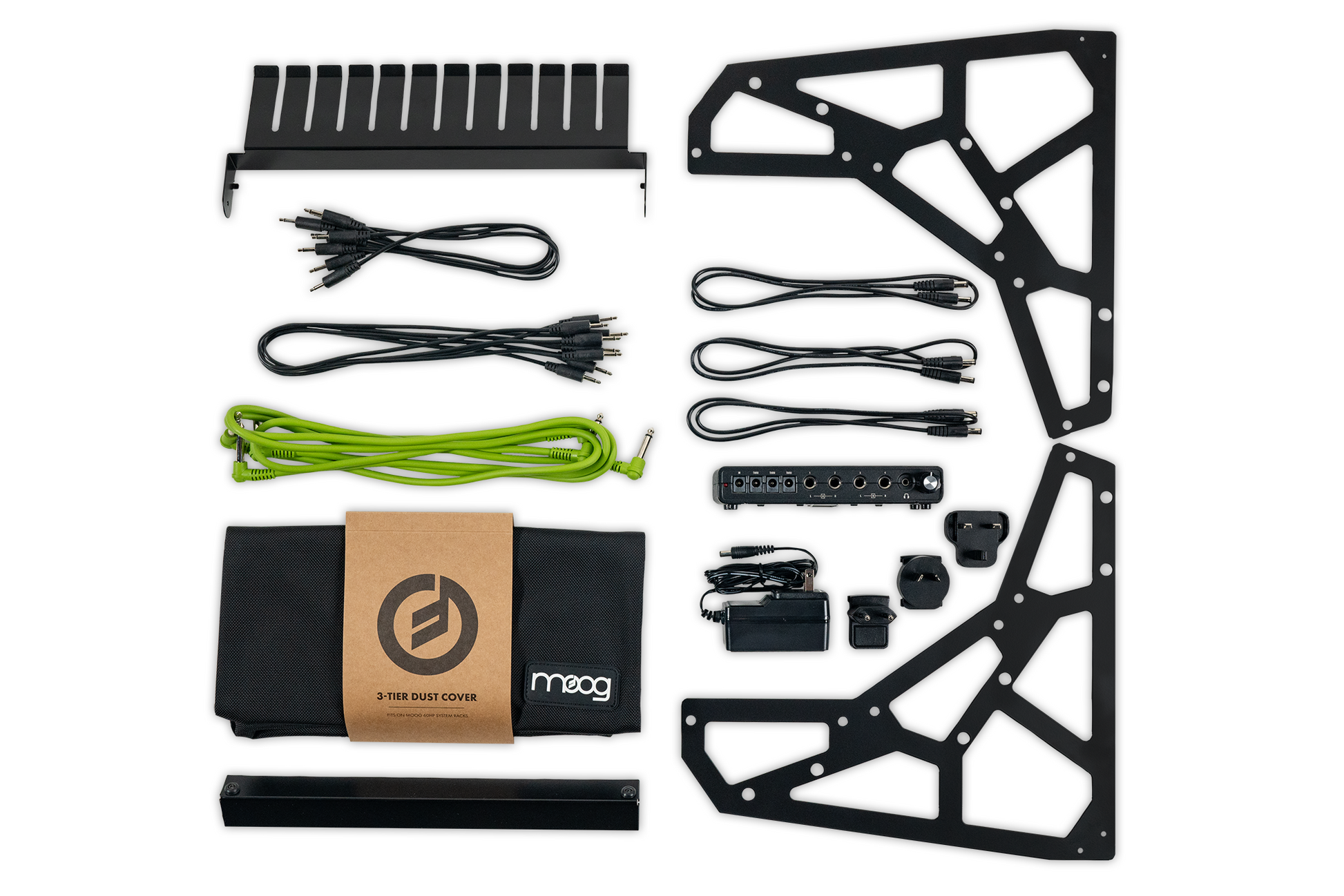

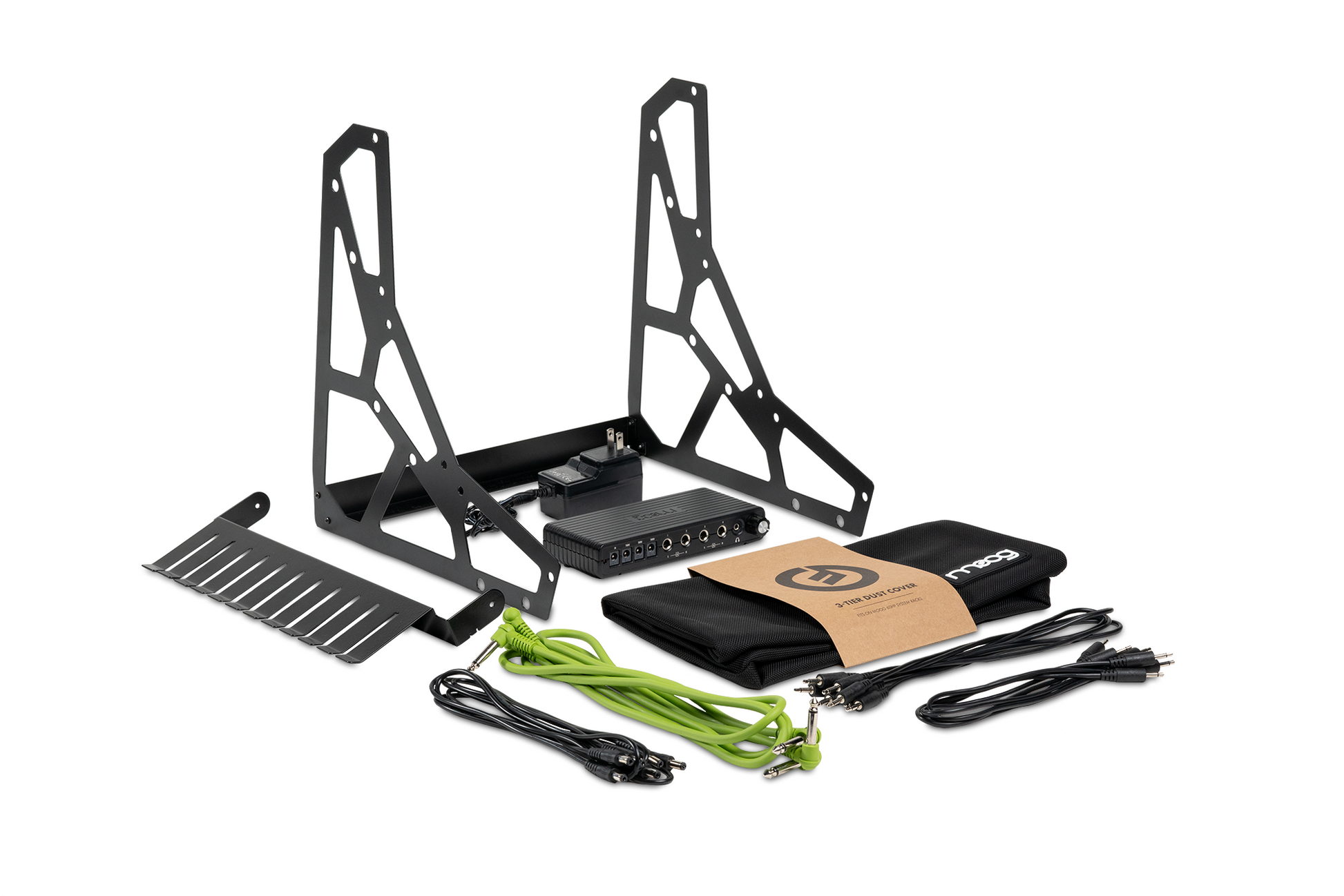

IN THE BOX

Power supply

Four-Channel Mother Summing Mixer / Power Distro

3-tier Rack System and Assembly Hardware

4x 12” 3.5mm TS Patch Cables

4x 18” 3.5mm TS Patch Cables

3x 18" Audio Cables

3x Barrel to Barrel DC Connectors

Phillips Head Screwdriver

Dust cover

QSG

Safety instructions

WEIGHTS & DIMENSIONS

PRODUCT ONLY

Weight (lbs) 4.3 lbs

Weight (kg) 1.95 kg

Imperial (in) 13.8” W x 14.76” D x 2.52” H

Metric (cm) 35.05 W x 37.49 D x 6.4 H

PRODUCT IN BOX

Weight (lbs) 6.17 lbs

Weight (kg) 2.8 kg

Imperial (in) 13.92” W x 15” D x 2.64” H

Metric (cm) 35.36 W x 38.1 D x 6.71 H
