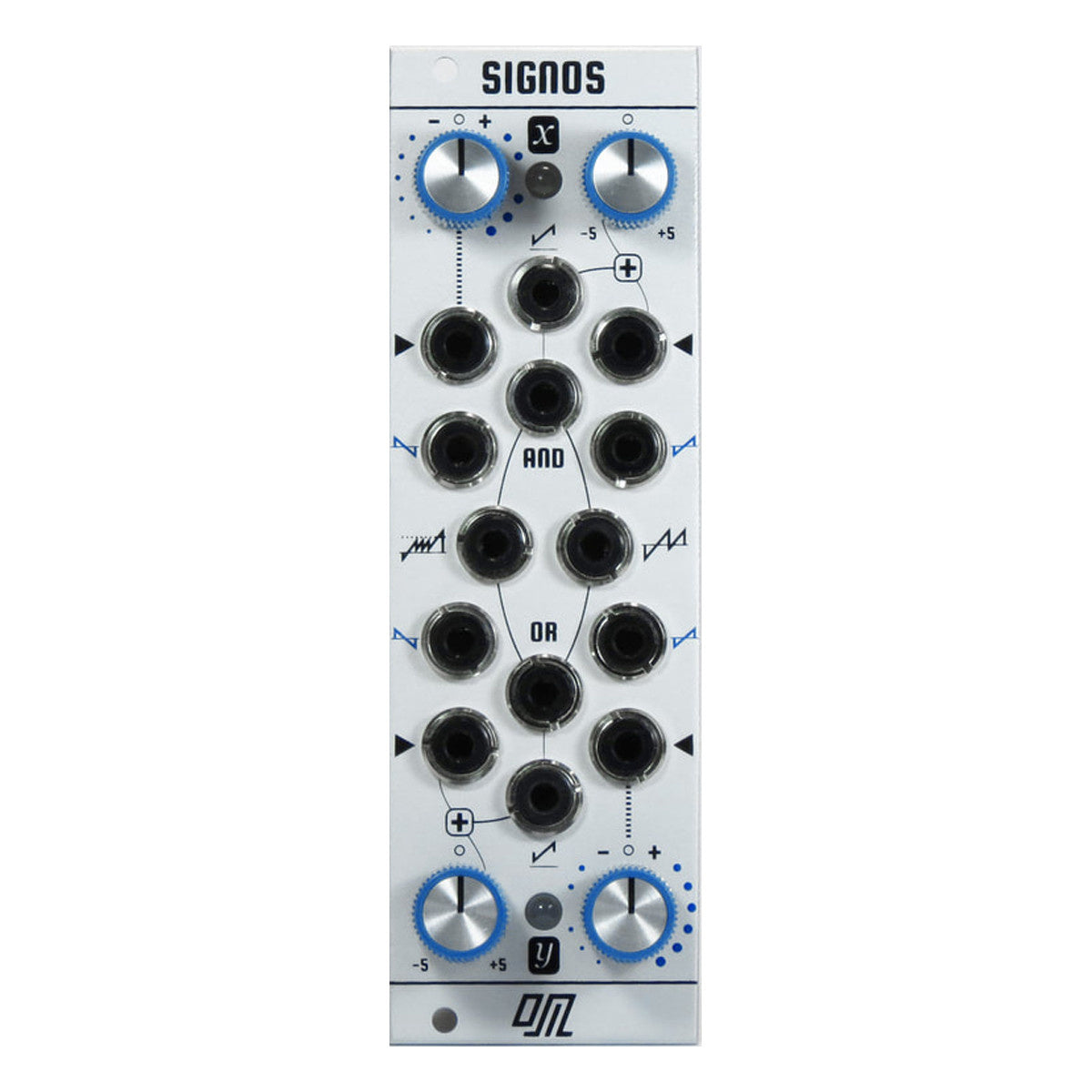

Olivella Modular  Signos Eurorack Signal Transmutator Module

Olivella Modular Signos Eurorack Signal Transmutator Module

Regular price
Sale price €218,00 Regular price €251,00

Product details

Main features

  • Channelsdual unipolar and bipolar VCAs with standard/inverted outputs
  • Offsetsindependent ±5 V controls for audio or CV processing
  • Logicanalog minimum/maximum outputs combine the channels
  • ShapingMOD and SHIFT circuits create additional waveform transformations

Overview

Olivella Modular Signos: The Alchemist of Your Signals

Signos is an indispensable "Swiss Army knife" for any Eurorack user looking to extract more potential from their existing modules. This 8HP module functions as a signal transmutator that dissects and transforms incoming audio or CV signals into entirely new shapes. Featuring half-wave and full-wave rectification, phase inversion, and signal comparison logic, Signos allows you to turn simple waveforms into complex modulation sources. Use it to double the frequency of a sine wave, invert envelopes for sidechain-style ducking, or discover unique timbres by blending different rectified outputs.

Key Features:

  • Signal Rectification: Provides dedicated positive and negative half-wave and full-wave outputs.

  • Phase Inversion: Instantly flip the polarity of any incoming signal for creative modulation.

  • Transmutation Logic: Extract specific parts of a waveform to create unique rhythmic or CV patterns.

  • Dual Audio & CV Path: Fully DC-coupled architecture for maximum versatility across all types of signals.

  • High-Precision Monitoring: Integrated LEDs provide real-time visual feedback on signal amplitude and polarity.

Technical Specifications:

  • Width: 8HP

  • Depth: 25mm

  • Power Draw: +12V: 30mA, -12V: 30mA

  • I/O: Main Signal Input, Thru Output, Inverted Output, Multiple Rectified Outputs.

Specifications· 4 details

General

HP
8 HP
Functions
VCA, Utility, and Modulation
Height
3U
Synthesizer form factor

About the brand

Olivella Modular

Olivella Modular designs discrete transistor-based filters, wavefolders, dual low-pass gates, and analog oscillators engineered for deep sound manipulation, tactile patch integration, and robust analog synthesis.
Origin
AR
Founded
2022
Products
7
