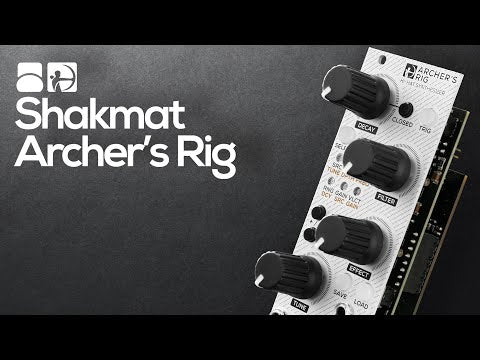

Shakmat Modular Archer's Rig

AR-Building_Guide.pdf

A quiver full of sharp, cutting digital noise algorithms combined with a versatile analog processing chain — perfect for hi-hat and high-pitched percussion synthesis.
The Archer’s Rig module offers a hybrid analog/digital architecture delivering a wide palette of sounds, from classic hi-hats and shakers to innovative bells. Its digital audio generator includes 13 source algorithms and 9 audio effects, processed through an analog chain featuring filters, distortion, and a VCA.

With a randomizer, 96 preset memory slots, and Select Bus compatibility, this module is a powerful tool for crafting dynamic, personalized percussion sounds.

Key Features

• Hybrid analog/digital hi-hat and percussion synthesis

• 13 digital noise generation algorithms with 9 audio effects

• Analog processing chain with VCF, VCA, distortion, and low cut filter

• Separate open and closed hi-hat outputs

• Independent random source amount for each parameter

• Dynamic phrasing via velocity input

• Non-volatile memory storing 96 presets with CV and Select Bus recall

• Skiff friendly

• Djtechtools rubber injected knobs

Technical Specifications

• Width: 8HP

• Depth: 27mm

• Power Consumption:

  • +12V: 105mA

  • -12V: 45mA

Applications

• Synthesizing classic and modern hi-hats, shakers, and bells

• Creating dynamic percussion patterns with velocity sensitivity

• Live performance and studio use with preset recall and modulation

• Integrating with modular setups using Select Bus protocol

• Experimenting with hybrid analog/digital sound design

Versions Available

• Assembled module

• DIY kit version
