Universal Audio Volt 4 Gen 2

Universal Audio Volt 4 Gen 2

Regular price €279,00
Sale price Regular price

Product details

Main features

  • PreampsTwo Tone Shaping mic preamps with 60 dB gain and Warmth, Focus and Shine modes
  • I/O12 in / 6 out at 32-bit/192 kHz, with ADAT or S/PDIF optical input for 8 extra channels
  • ConnectivityMIDI In/Out on TRS mini-jacks plus a USB-C hub port that can power a MIDI controller
  • WorkflowSmart Display, Auto-Gain, Clip Protection and built-in loopback for streaming

Overview

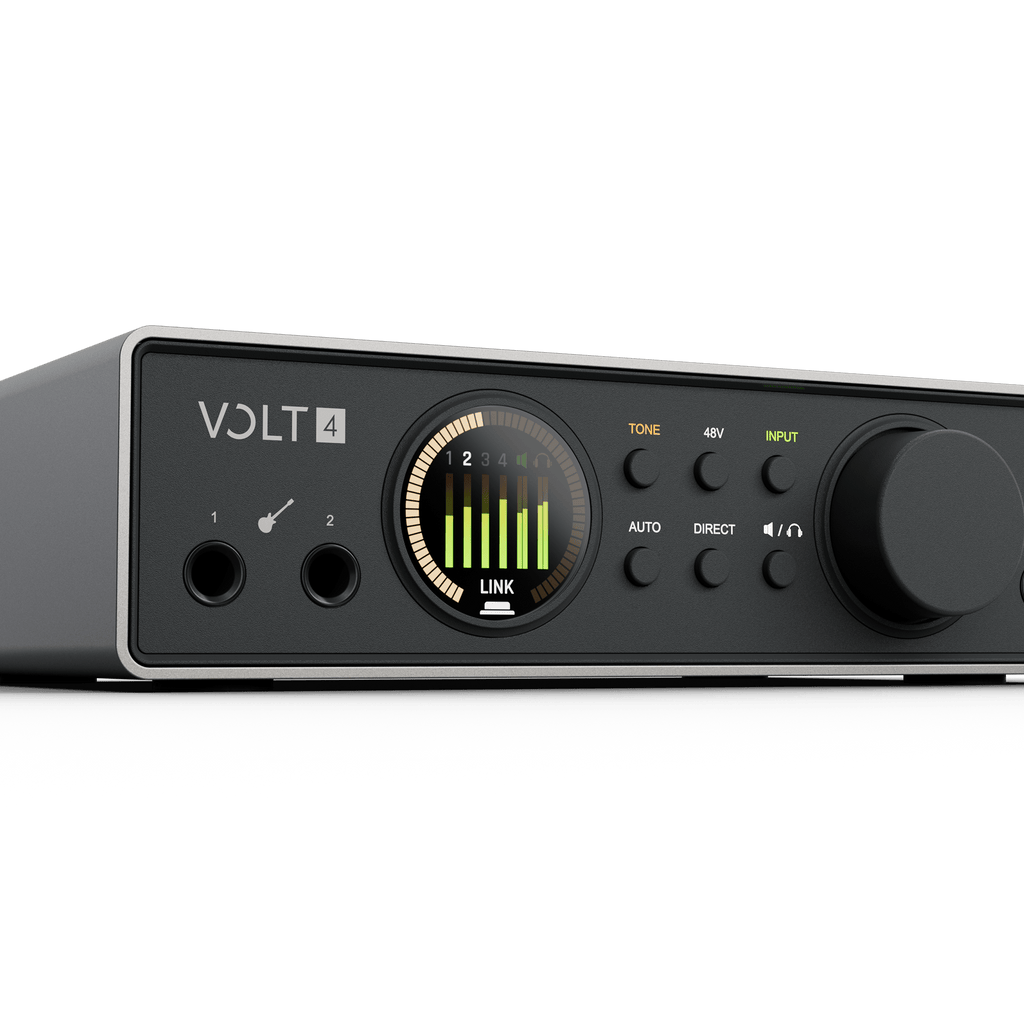

The Universal Audio Volt 4 Gen 2 is a 12-in/6-out USB-C audio interface from UA's second-generation Volt range. It has two Tone Shaping mic preamps, 32-bit/192 kHz conversion and connections for outboard gear, MIDI hardware and optical expansion. It suits home and mobile recording of vocals, instruments and synths, as well as podcasting and streaming.

  • Tone Shaping preamps: two mic preamps with 60 dB of gain and three one-button modes: Warmth (inspired by the UA 610 tube preamp), Focus (modelled on a classic American solid-state console) and Shine (British Class-A circuitry)

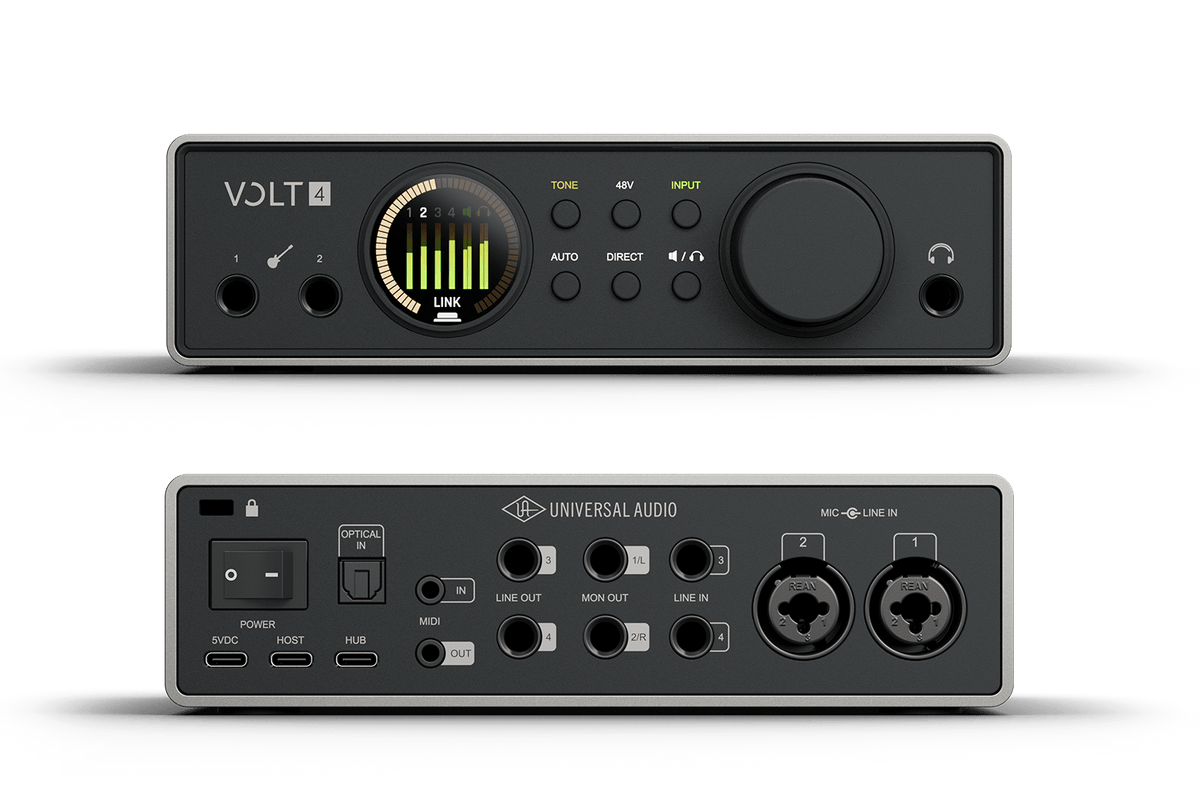

  • Expandable I/O: two mic/line combo inputs, two front-panel Hi-Z instrument inputs, line inputs and outputs 3–4, and an ADAT or S/PDIF optical input for up to eight more channels
  • MIDI and USB hub: MIDI In and Out on 1/8" TRS (Type A), plus a USB-C hub port that can power a USB MIDI controller
  • Smart Display: a full-colour screen showing inputs, levels and settings
  • Recording aids: Auto-Gain for setting levels and Clip Protection for unexpected peaks
  • Built-in loopback for podcasts, streams and video calls

Line inputs and outputs 3–4 let you patch hardware processors into your recording chain or connect a line-level synth. Through the optical input, an ADAT preamp gives you eight extra channels at 44.1/48 kHz, which makes the Volt 4 a practical base for recording drums or a band. Phantom power is switchable per channel, so you can run a condenser and a dynamic mic side by side.

The Volt 4 works with UAD Console and LUNA, with session recall and low-latency cue mixes. Plug-ins run natively on the host computer rather than on DSP hardware. The interface is USB bus-powered and class-compliant on Mac, iPad and iPhone. On Windows it uses the ASIO driver from the UA Connect app. For mobile rigs with more gear attached, there is a separate USB-C power input, and a rear-panel power switch.

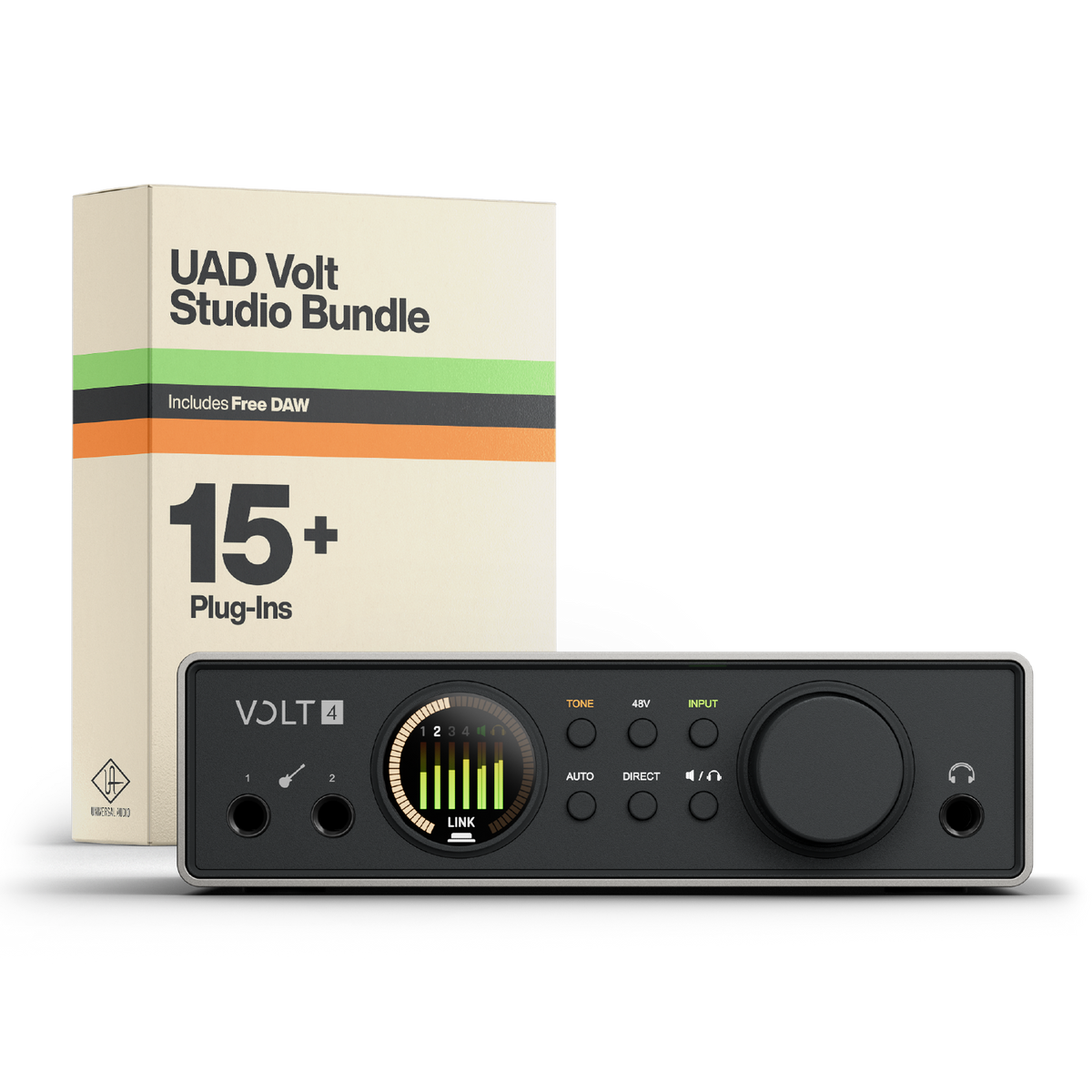

The Volt 4 ships with the UAD Volt Studio Bundle, whose contents UA notes are subject to change. It currently includes LUNA Free, the UA 610 Collection, LA-2A and 1176 plug-ins, Pure Plate Reverb, Galaxy Tape Echo, the PolyMAX and Anthem synths and third-party extras such as Melodyne Essential. Compared with the Volt 4 Max, it has no compressor processing, no Main/Alt speaker switching and a single headphone output.

Specifications· 28 details

General

Inputs / outputs
12 in / 6 out
Bit depth
32-bit
Sample rates
44.1, 48, 88.2, 96, 176.4, 192 kHz
Preamp gain
60 dB
Phantom power
+48V, switchable per channel
OS compatibility
Windows 10 64-bit or newer, macOS 12 or newer, iPadOS / iOS 16 or newer
Device interface
, , , , ,
Power source
Connectivity technology
,
Audio component form factor
Desktop
Maximum bit depth

Connections

Mic/line inputs 1–2
XLR / 1/4" combo jack
Instrument inputs 1–2
1/4" TS unbalanced, 1 MΩ
Line inputs
1/4" TRS balanced or TS unbalanced, 10 kΩ, max 22 dBu
Monitor and line outputs 3–4
1/4" TRS balanced, DC coupled, max 20.2 dBu
Headphone output
1/4" TRS stereo, 45 mW into 32 Ω, 24 mW into 300 Ω
Optical input
ADAT (8 ch at 44.1/48 kHz, 4 at 96 kHz, 2 at 192 kHz) or S/PDIF (2 ch)
MIDI
In and Out, 1/8" TRS, Type A
USB
USB-C 2.0 host port, USB-C hub port (5VDC @ 0.5A max), USB-C power input

Performance

Mic input frequency response
20 Hz–20 kHz ±0.08 dB
Mic input dynamic range
119 dB (A-weighted)
Mic input THD+N
−110 dB (0.0003%)
Mic input max level
14 dBu
Output dynamic range
126 dB
Output THD+N
−112 dB (0.0003%)

Power

Power
USB bus-powered or external 5VDC @ 1A minimum
Power consumption
4.2 W typical, 5.8 W max @ 5VDC
Power switch
Rear panel
