Warm Audio WA-47

Warm Audio WA-47

Regular price
Sale price €989,00 Regular price €1.219,00

Product details

Main features

  • CapsuleK47-style large-diaphragm tube condenser
  • Patternsnine polar settings spanning cardioid, omni and figure-eight
  • CircuitAMI transformer and low-gain 5751 vacuum tube

Overview

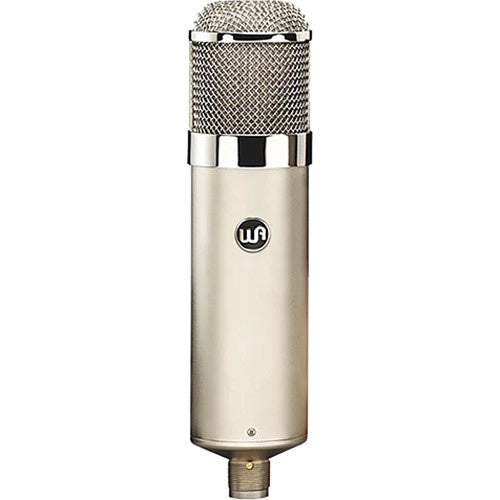

The Warm Audio WA-47 is a large-diaphragm tube condenser microphone designed to provide the tonal characteristics of classic U47 microphones for vocalists, musicians, and recording engineers in home, project, and commercial recording studios. Thanks to nine polar patterns—cardioid, omnidirectional, figure-8, and six intermediate patterns—selectable from the included external power supply, its versatility allows it to excel at anything from close-up vocals to distant room sounds.

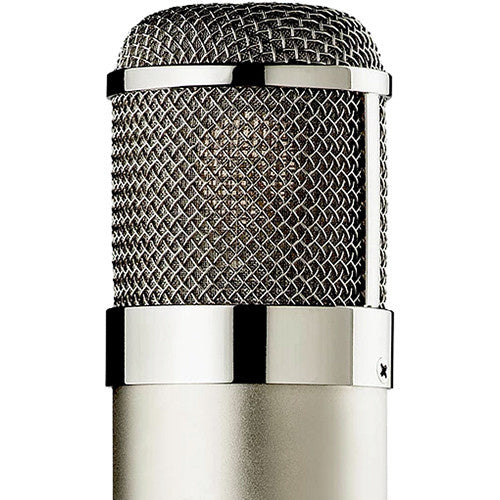

The K47-style capsule reproduction features dual gold-sputtered, 6-micron Mylar diaphragms with a single backplate. Tone-enhancing components, including a JJ 5751 vacuum tube, TAB-Funkenwerk (AMI) output transformer, and WIMA, Solen, and polystyrene capacitors, have been carefully selected to impart vintage-flavored tone characterized by a smooth, uncompressed high end and strong, warm low frequencies. Even the 7-pin cable, manufactured by Gotham Audio in Switzerland, rises to meet the demands of uncompromised audio production. It ensures the integrity of high frequencies and minimizes phase shift between the microphone and the power supply.

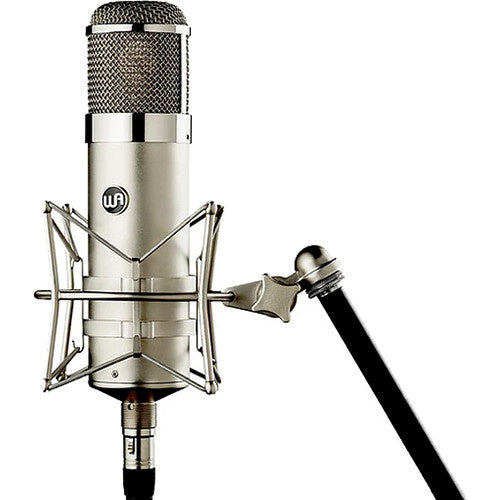

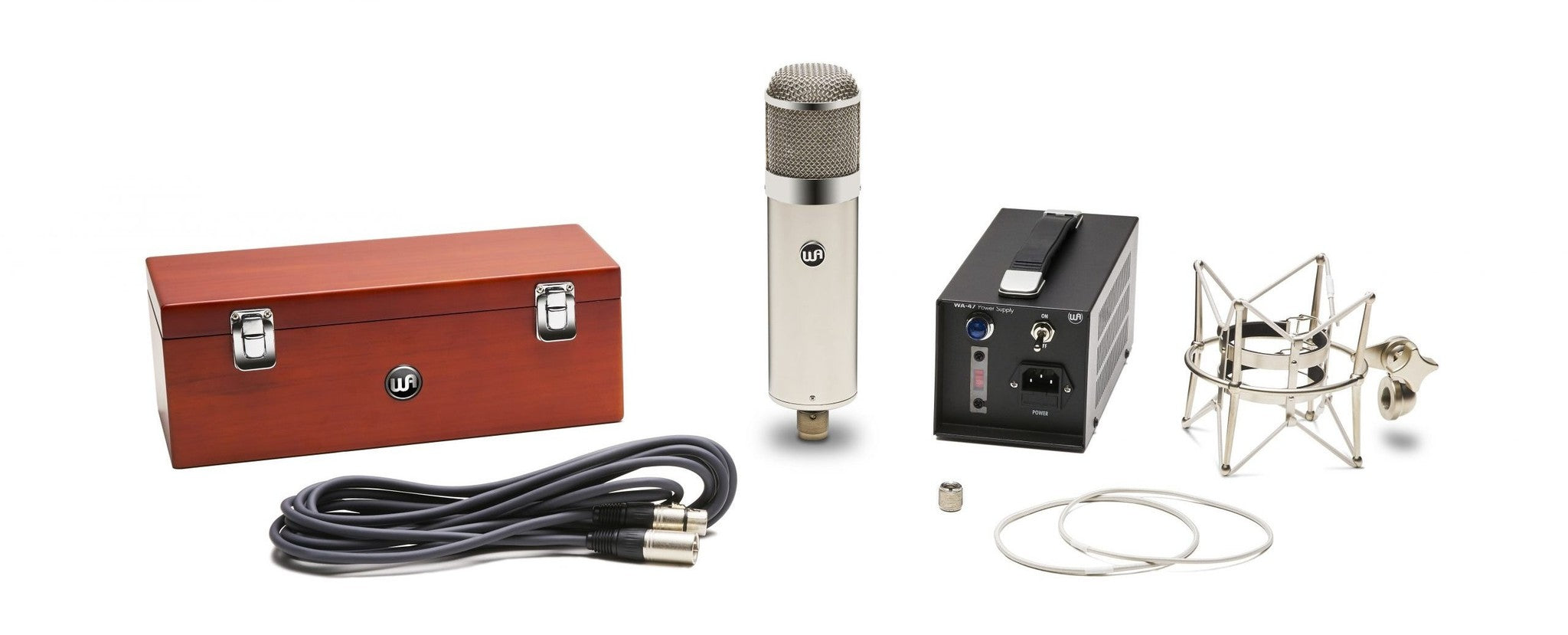

The WA-47 ships with a wood box and a shockmount, which reduces rumble and decouples it from problematic vibrations.

Key Features

  • Nine Polar Patterns
  • K47-Style Capsule Reproduction
  • Gold-Sputtered, 6-Micron Mylar Diaphragm
  • TAB-Funkenwerk (AMI) Output Transformer
  • JJ 5751 Vacuum Tube
  • WIMA, Solen, and Polystyrene Capacitors
  • Gotham Premium 7-Pin Cable
  • Includes Wood Box and Shockmount
  • Includes External Power Supply
