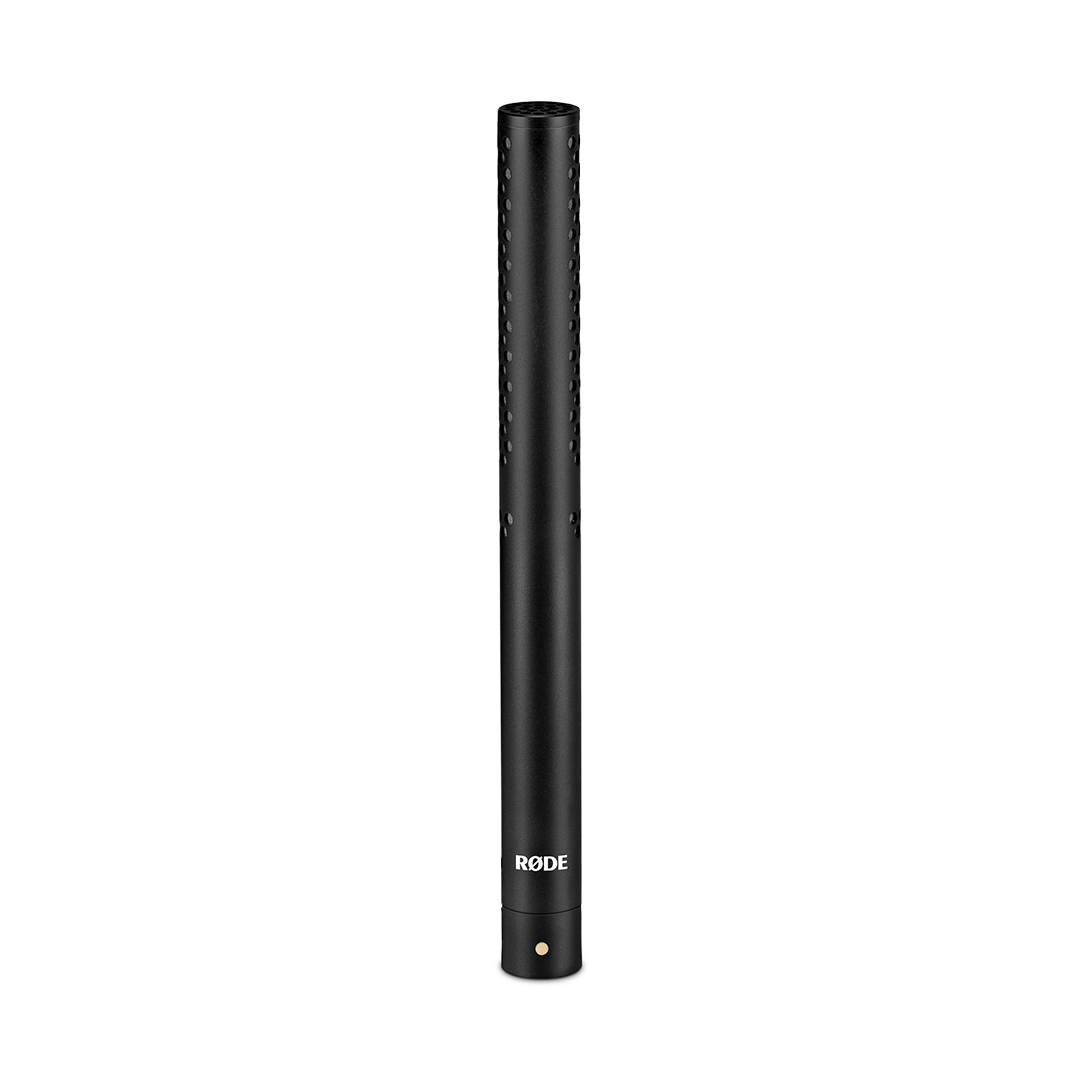

Rode NTG5

The NTG5 is an ultra-lightweight professional shotgun microphone perfect for demanding recording applications. Featuring a revolutionary acoustic design, tightly controlled frequency response, smooth off-axis response, and very low self-noise (10dBA), it sounds outstanding in a wide variety of settings, especially in location recording and filmmaking, where superior audio quality is essential.

Key Features:

• Revolutionary acoustic design for unmatched transparency and natural, uncolored sound
• Extremely lightweight (76g) and compact (203mm length)
• Tightly controlled frequency response with very low self-noise
• Highly directional supercardioid polar pattern
• RF-bias technology and conformal coating for performance in adverse conditions

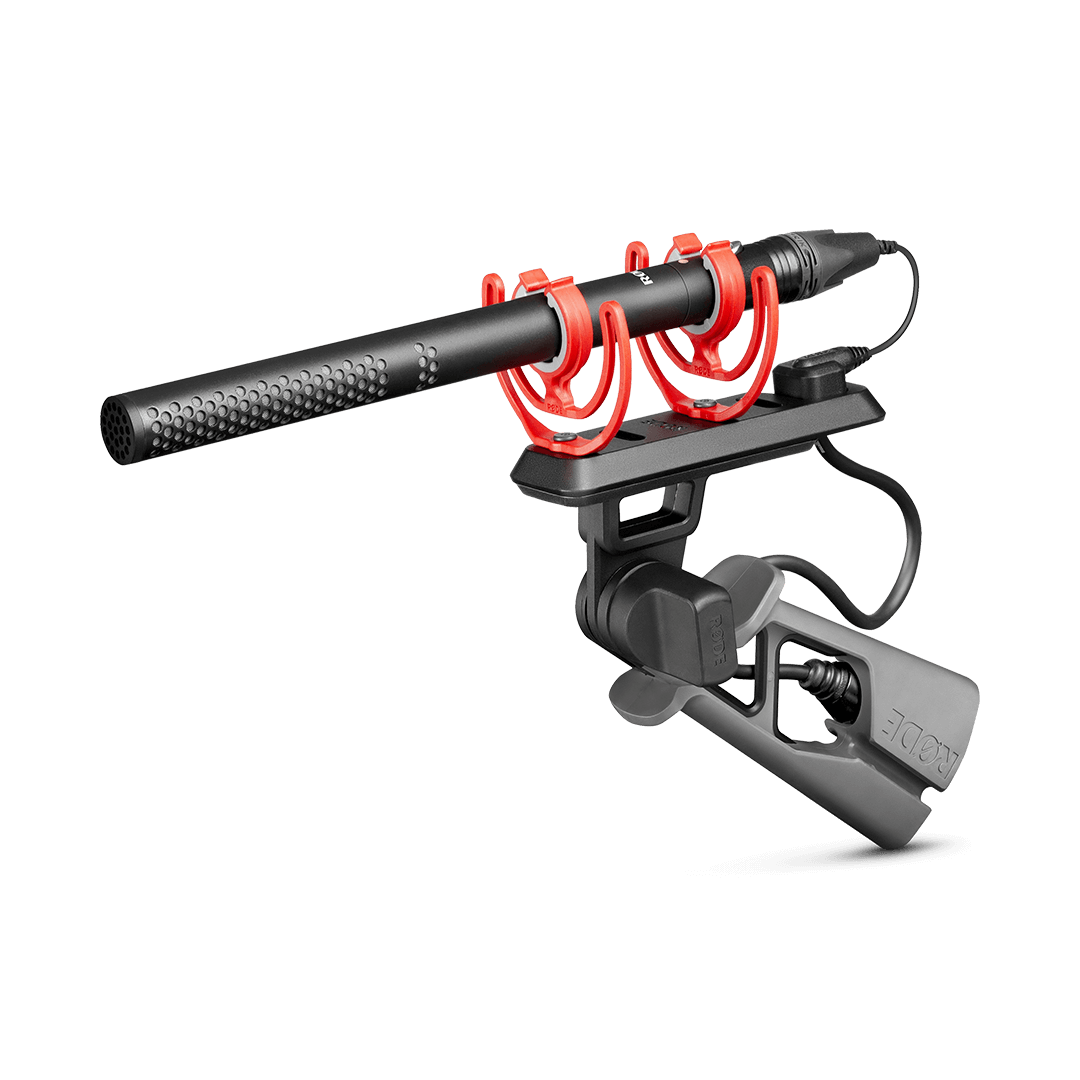

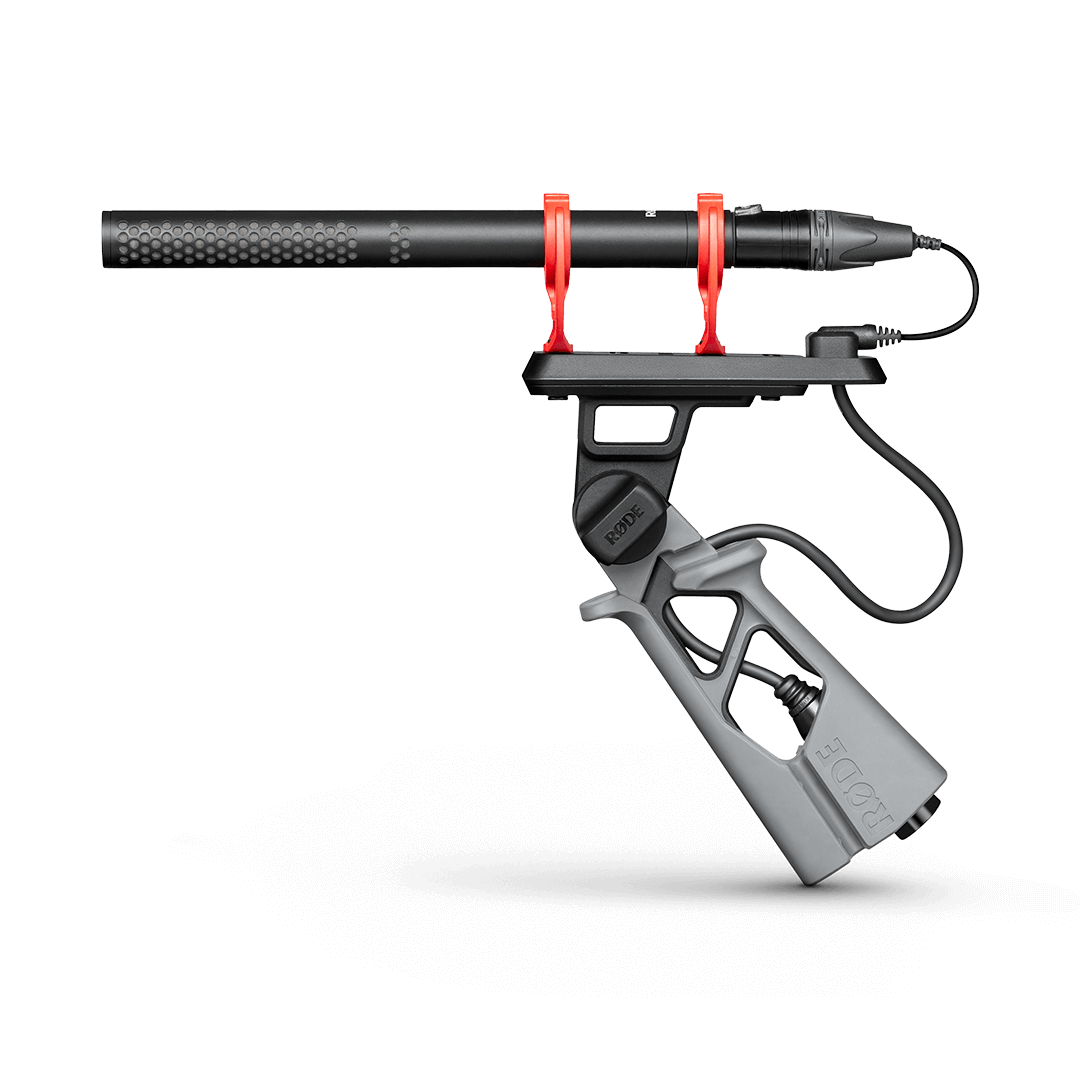

• Complete location recording kit includes WS10 windshield, PG2-R pistol grip, and accessories

Specifications:

• Acoustic & Electrical:

  • Acoustic Principle: RF-bias condenser
  • Active Electronics: RF-bias demodulation
  • Polar Pattern: Supercardioid shotgun
  • Frequency Response: 20 Hz - 20 kHz, 80 Hz - 20 kHz ±3 dB
  • Output Impedance: 25 Ω
  • Signal-to-Noise Ratio: 84 dB
  • Equivalent Noise: 10 dB SPL (A-weighted, per IEC651)
  • Input SPL @ 1% THD: 130 dB SPL (1kHz @ 1% THD, 600 Ω load)
  • Power Requirements: 2 mA @ 48V phantom power
  • Sensitivity: -23.5 dB re. 1 Volt/Pascal or Better (66 mV @ 94 dB SPL @ 1 kHz)

• Mechanical:

  • Weight: NTG5: 76g, PG2-R: 224g
  • Dimensions (mm): NTG5: 203 (H) x 19 (W) x 19 (D), PG2-R: 240 (H) x 60 (W) x 117 (D)
