Warm Audio Centavo Mod Overdrive Pedal

Warm Audio Centavo Mod Overdrive Pedal

Regular price
Sale price €179,00 Regular price €209,00

Product details

Main features

  • CircuitKlon Centaur-style overdrive with TL072 op amps and vintage-style diodes
  • ControlsGain, Treble (boost/cut at 400Hz) and Output master volume
  • MOD switchchanges the high-pass filter to extend the low end on the lowest strings
  • Bypassbuffered bypass operation

Overview

The Warm Audio Centavo Mod is a compact overdrive pedal from the company's Mod Series. It packs the circuit of the full-size Centavo, Warm Audio's take on the Klon Centaur design, into a smaller enclosure with top-mounted jacks. It suits guitarists who want that clean-boost-to-overdrive character on a crowded pedalboard.

  • Same circuit as the full-size Centavo: Warm Audio says the circuit and component choices are unchanged. Only the enclosure is smaller.
  • Klon-style components: TL072 op amps, vintage-style diodes, carbon and metal film resistors and a charge-pump voltage regulator.

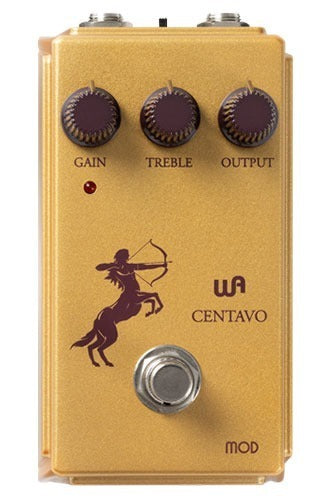

  • Three controls: Gain sets the clipping gain, Treble boosts or cuts around 400Hz, and Output acts as master volume.
  • MOD switch: a rear switch changes the high-pass filter value. In the up position it extends the low end, mainly on the two lowest strings.
  • Board-friendly layout: top-mounted input, output and 9V DC jacks, with buffered bypass.

Warm Audio positions the pedal as an always-on clean boost, a partner for other drive pedals or a mid-gain overdrive in its own right. The suggested starting points range from clean boost and edge-of-breakup to biting overdrive and a harder clipping setting. According to Warm Audio, the bass-extending switch was originally requested by Jeff Beck. The pedal has a custom-cast enclosure in a gold Champagne finish with tapered oxblood knobs.

Specifications· 19 details

General

Type
Overdrive pedal (Klon Centaur-style circuit)
Op amps
TL072
Diodes
Vintage-style
Resistors
Carbon and metal film
Voltage regulator
Charge-pump
Bypass
Buffered bypass
Enclosure
Custom-cast, Champagne (gold) finish

Connections

Input
1/4" (Inst)
Output
1/4" (Amp)
Power
9V DC adapter jack

Controls

Gain
Clipping gain (distortion)
Treble
Boost/cut at 400Hz
MOD switch
Changes high-pass filter value; up position extends low end

Power

Power supply
9V battery or 9V DC pedal adapter
Power consumption
40mA

Dimensions & weight

Length
2.5"
Width
4.5"
Height
2.2"
Weight
.7 lbs
